Code 6985
EUR 500.00
In stock

EUR 500.00
In stock

used

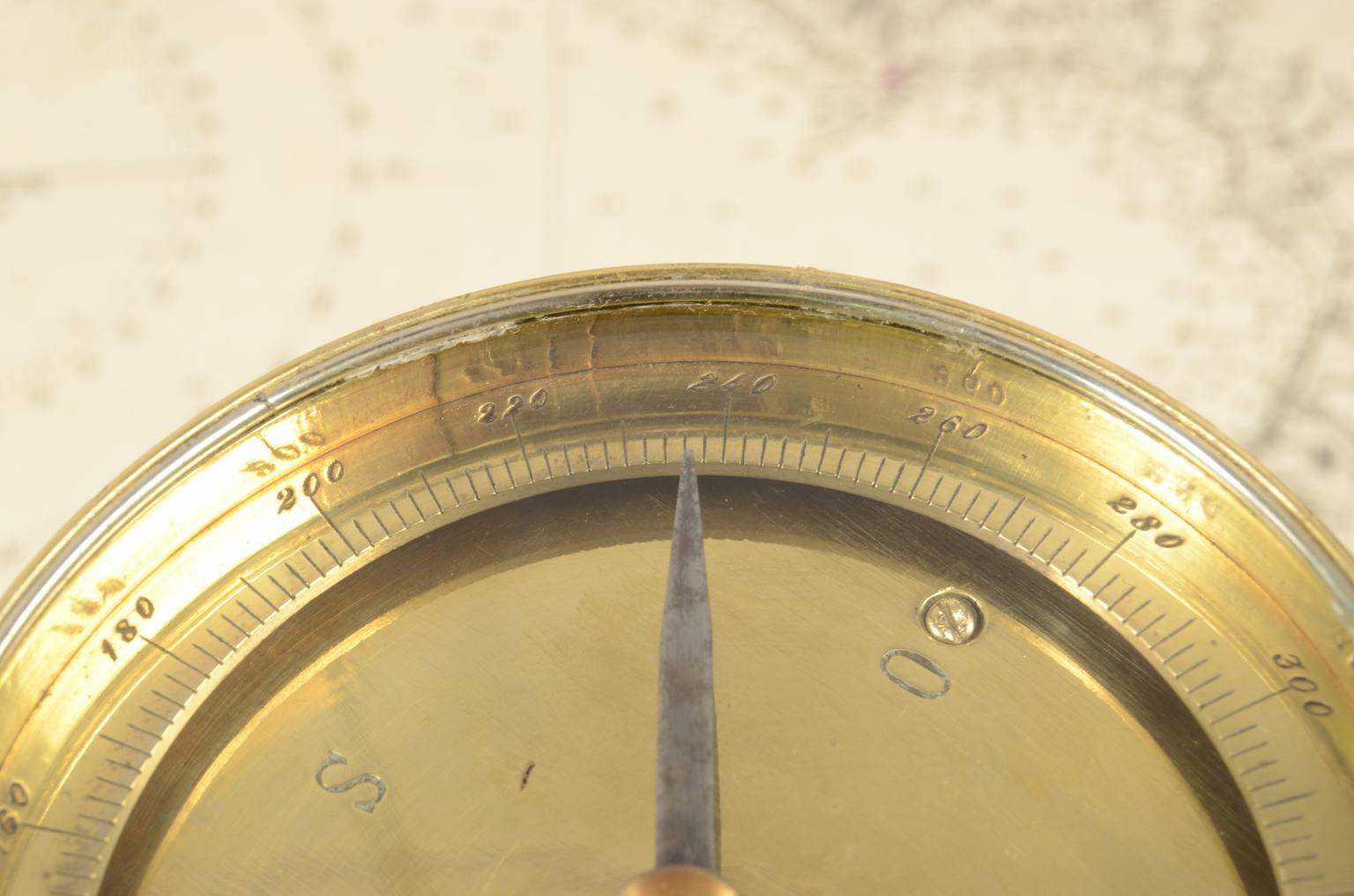

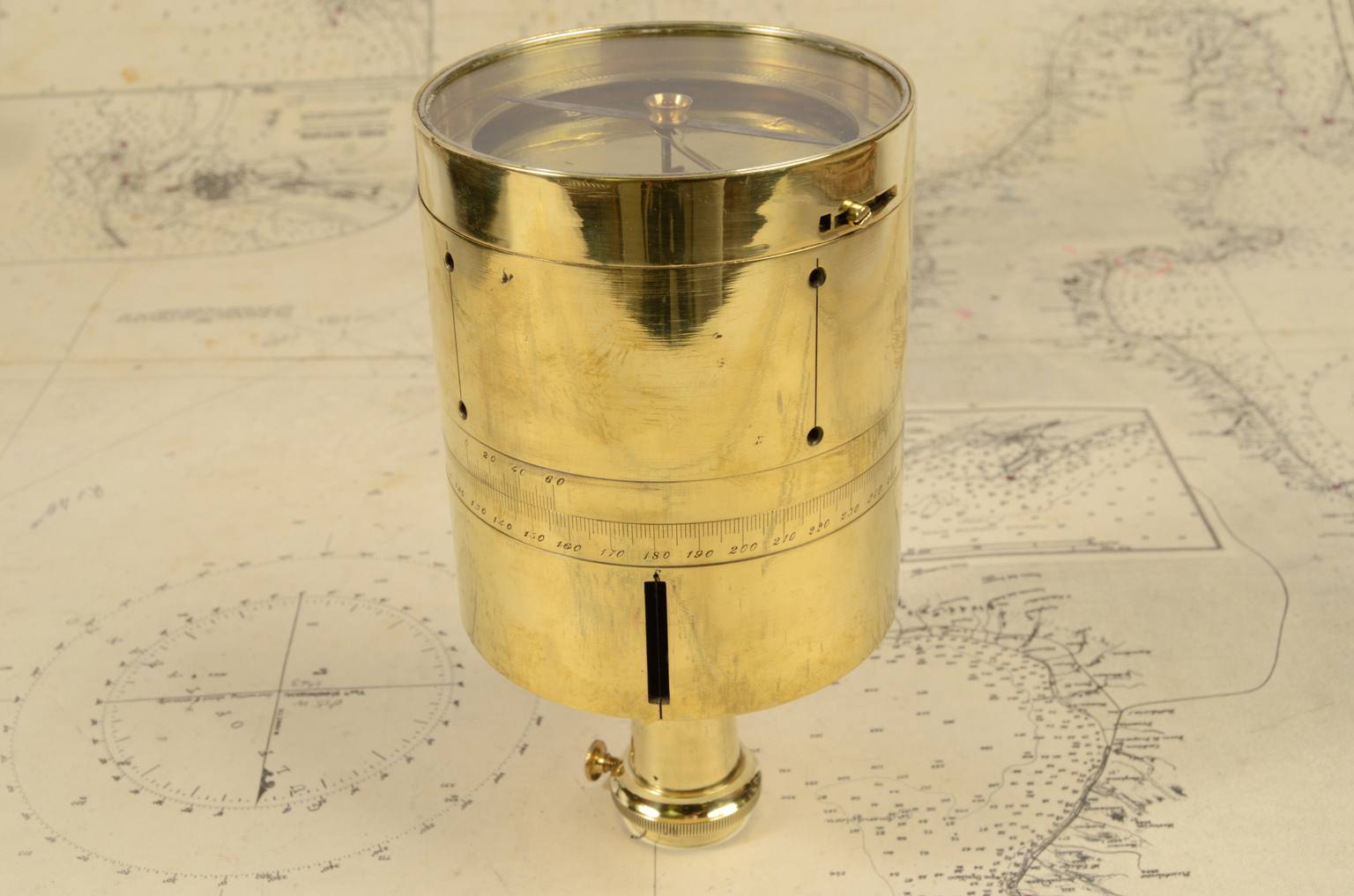

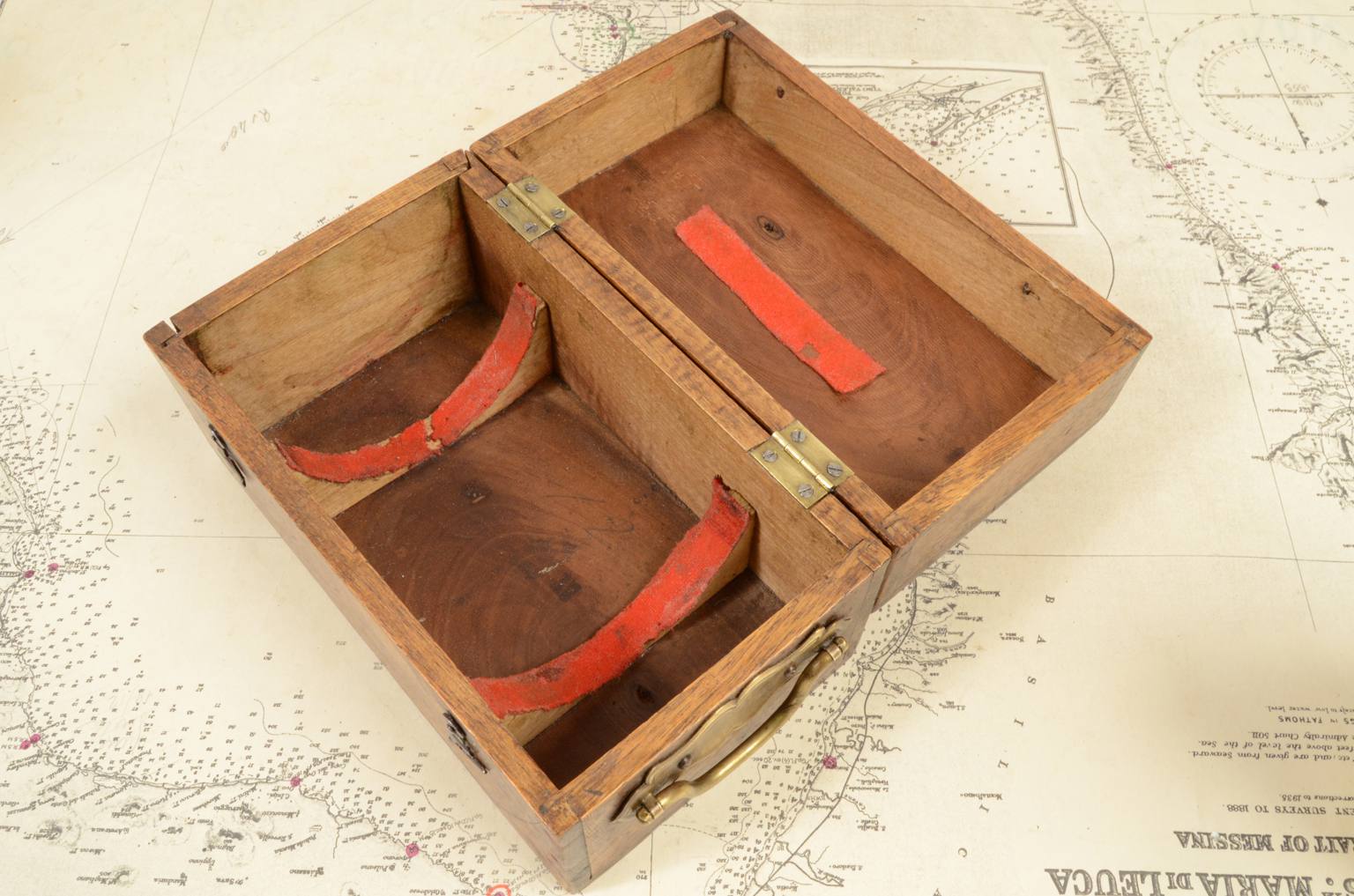

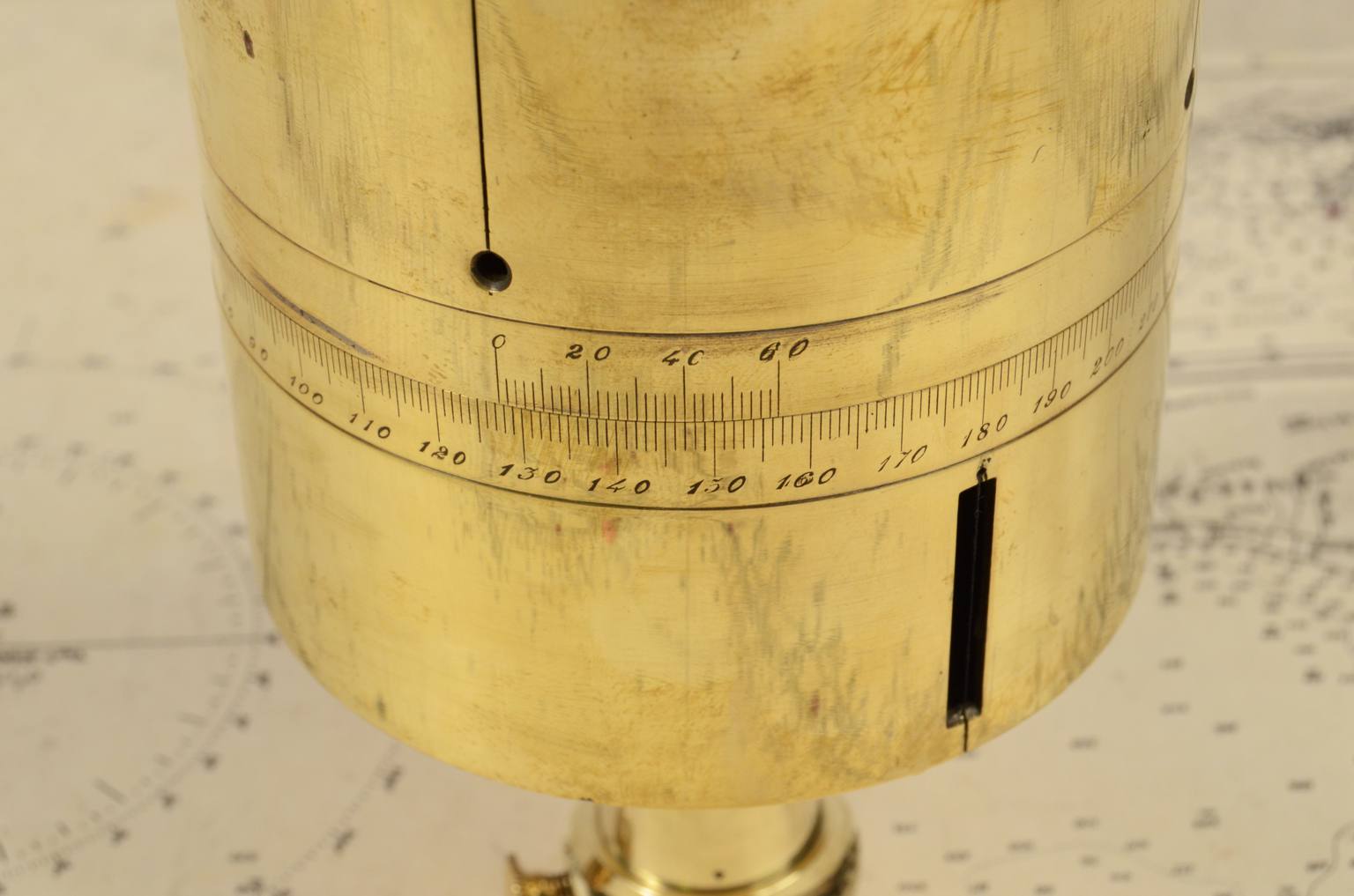

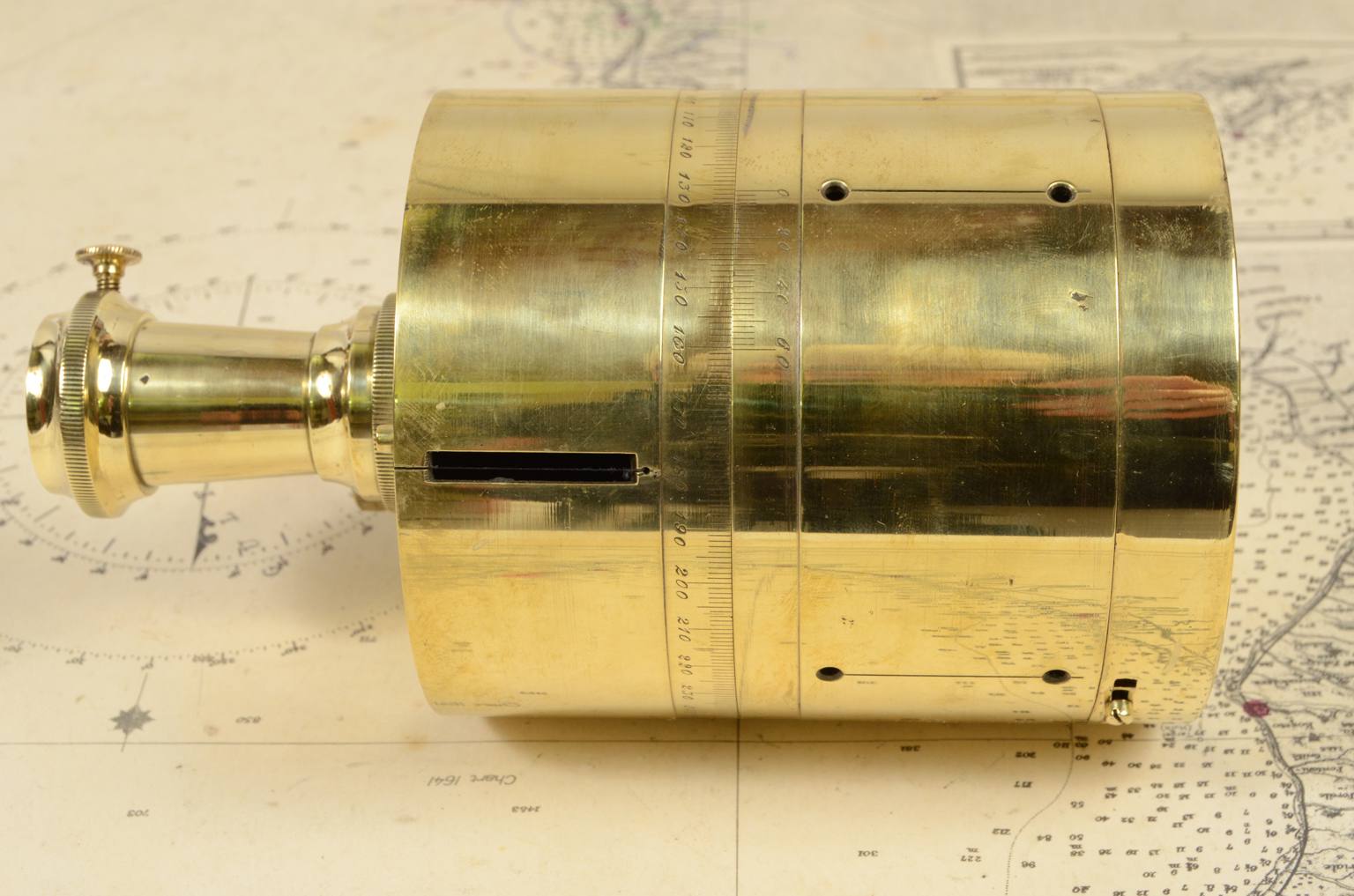

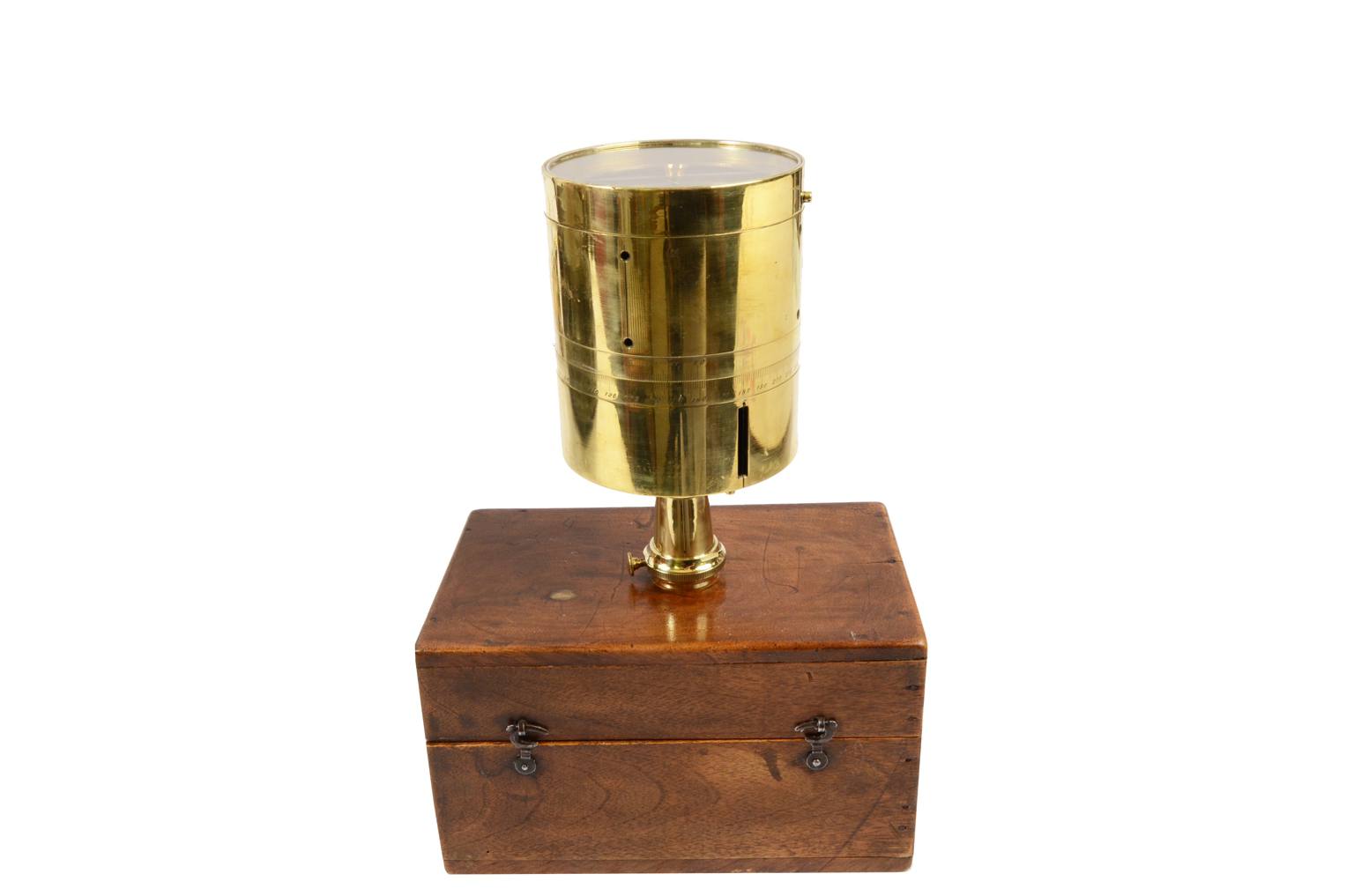

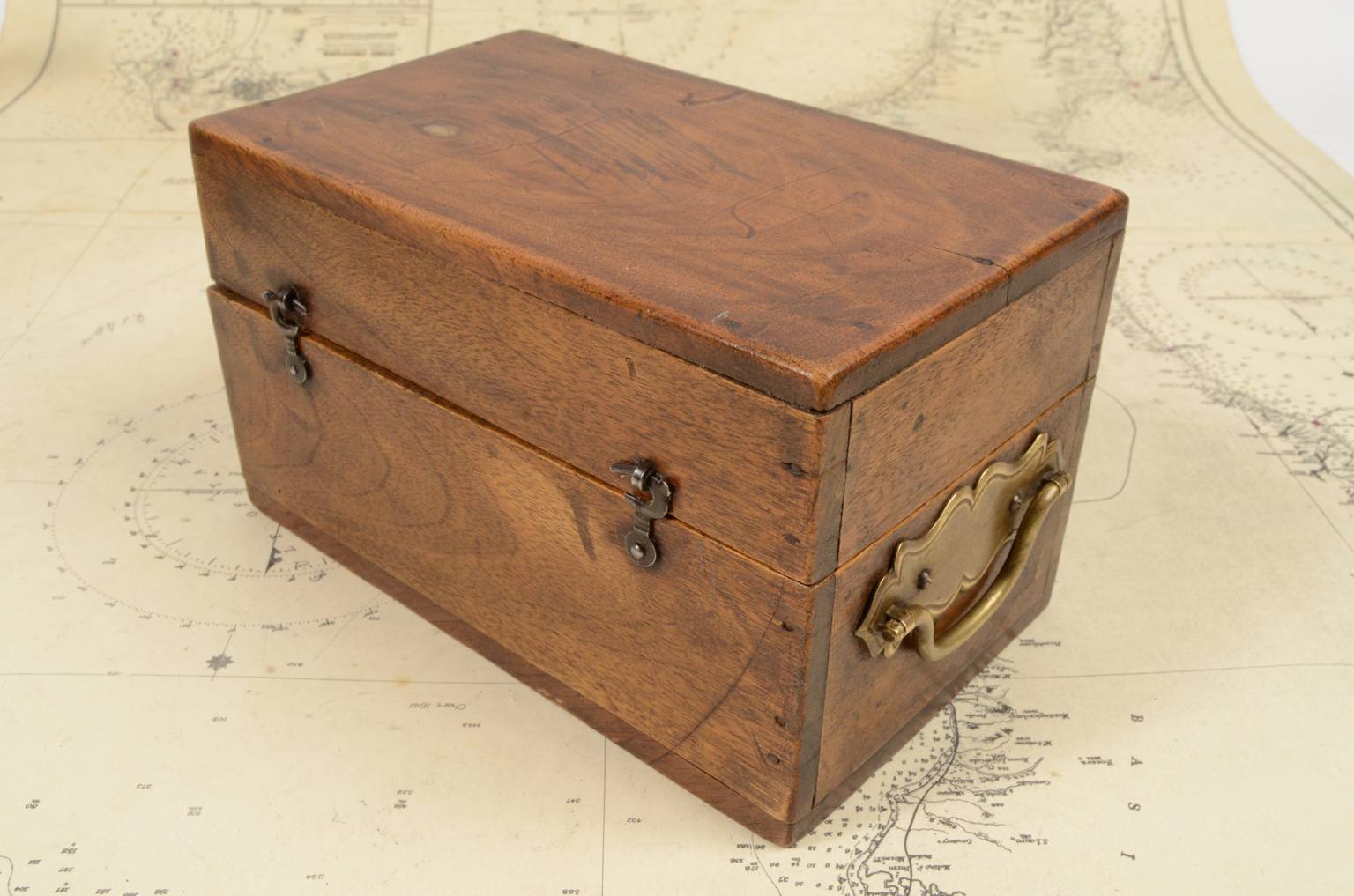

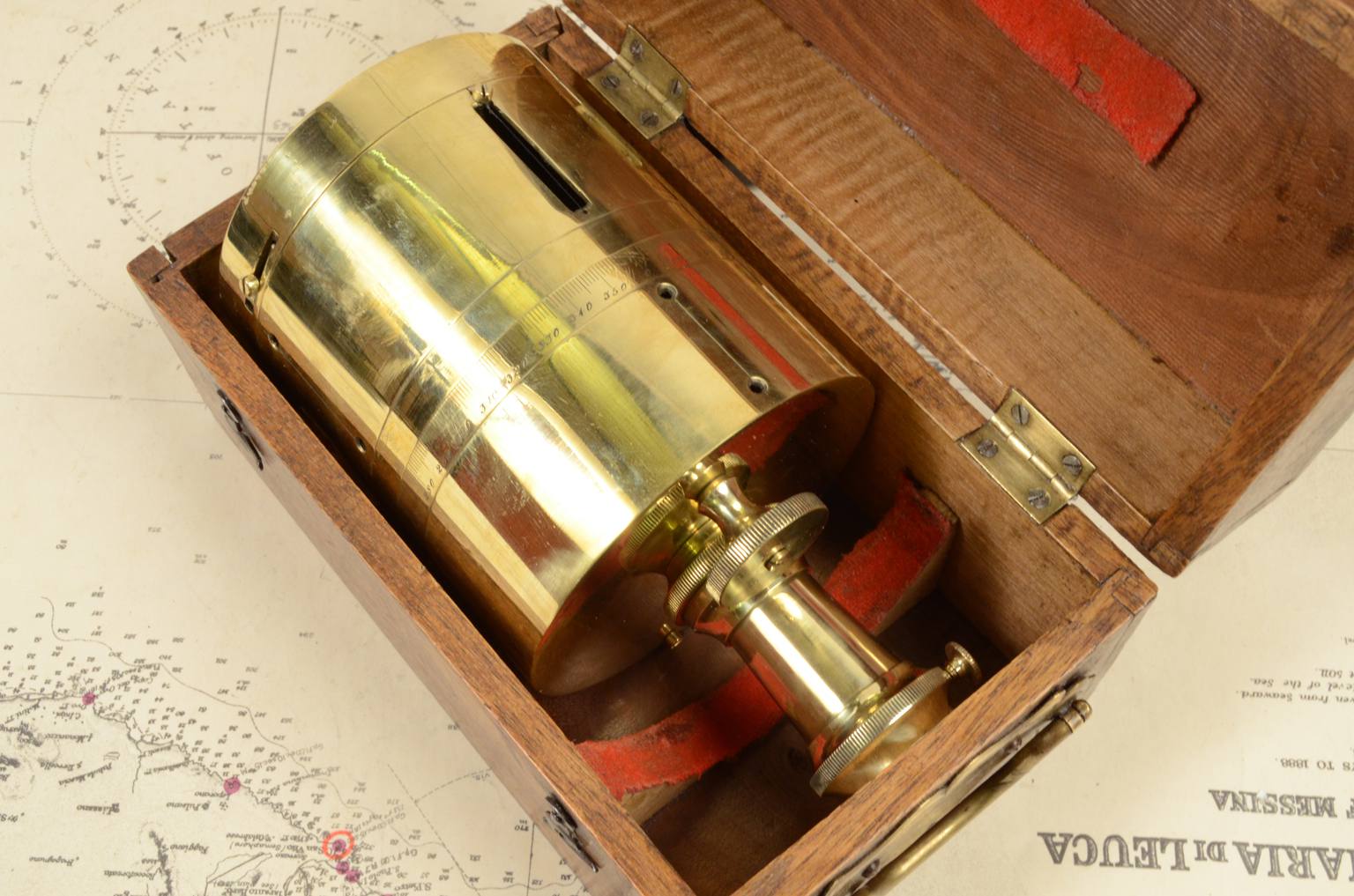

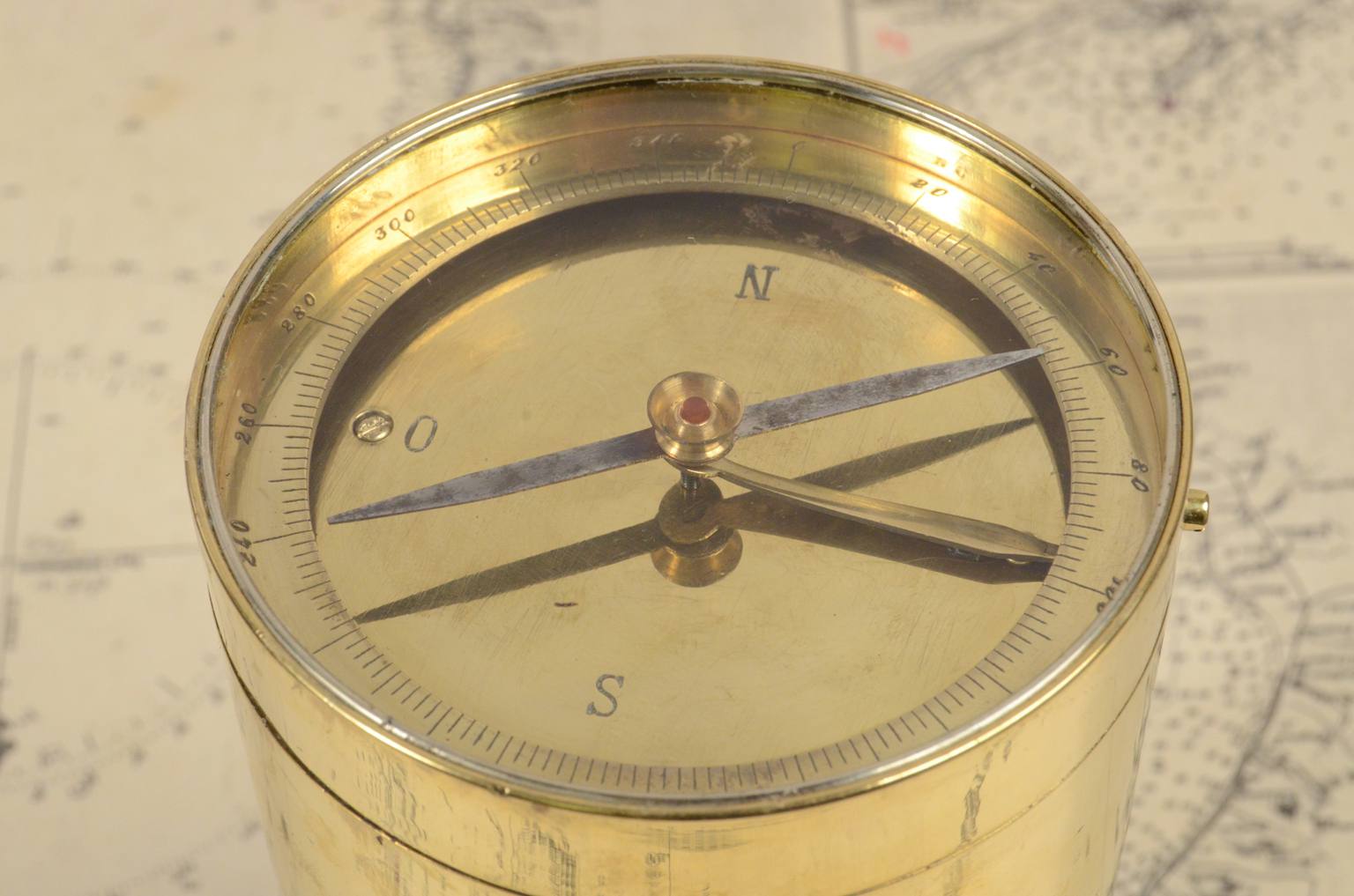

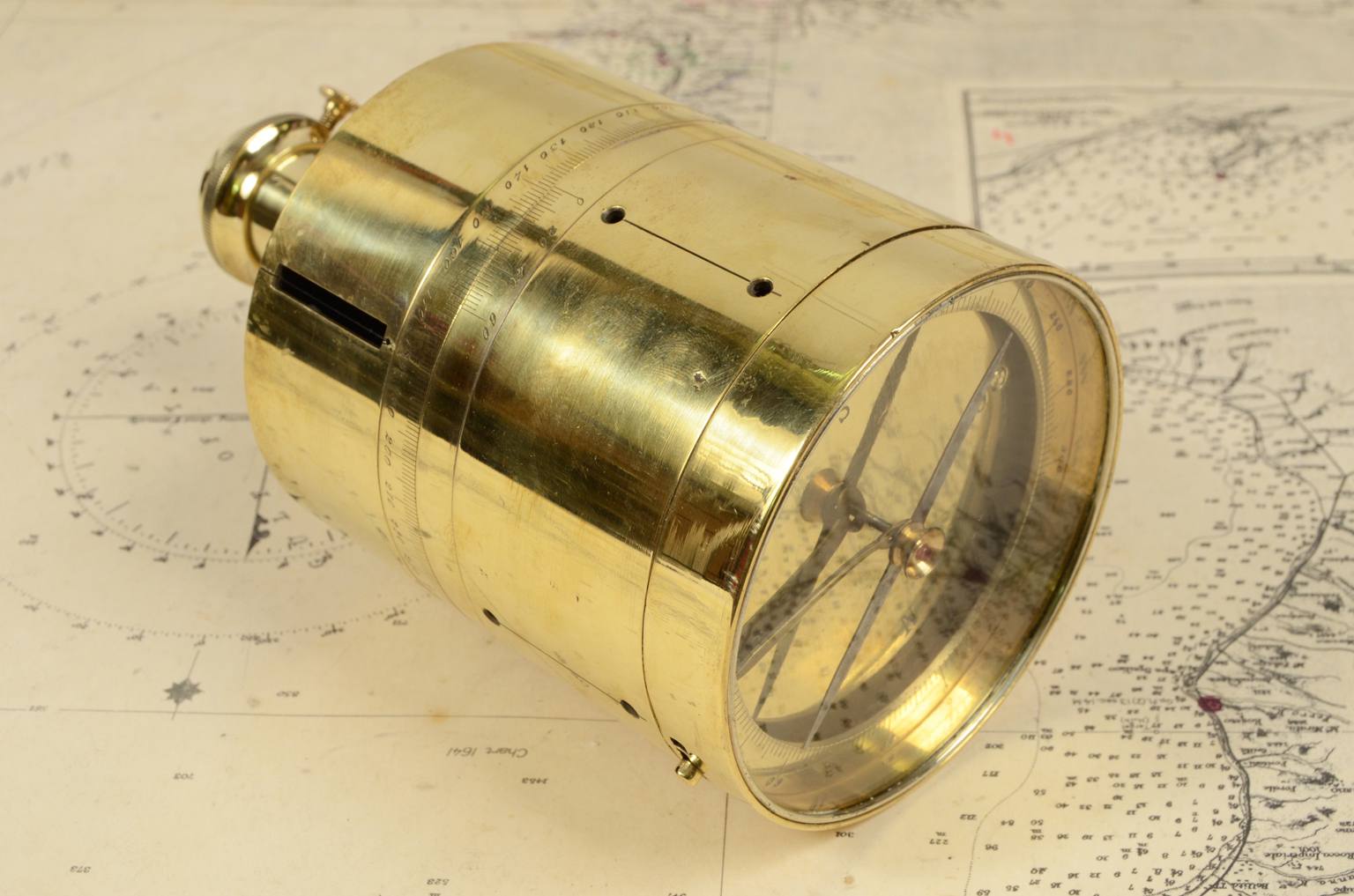

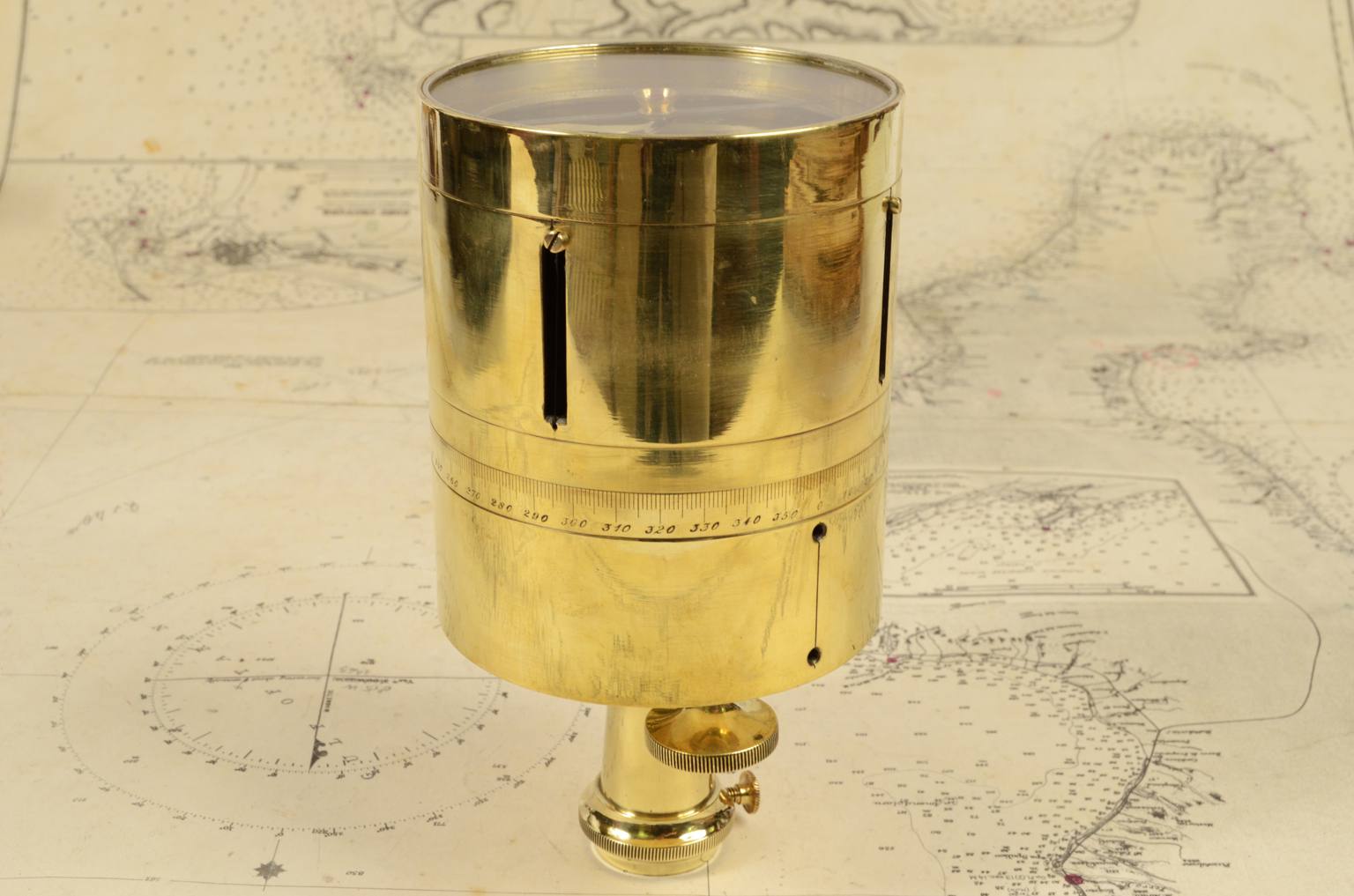

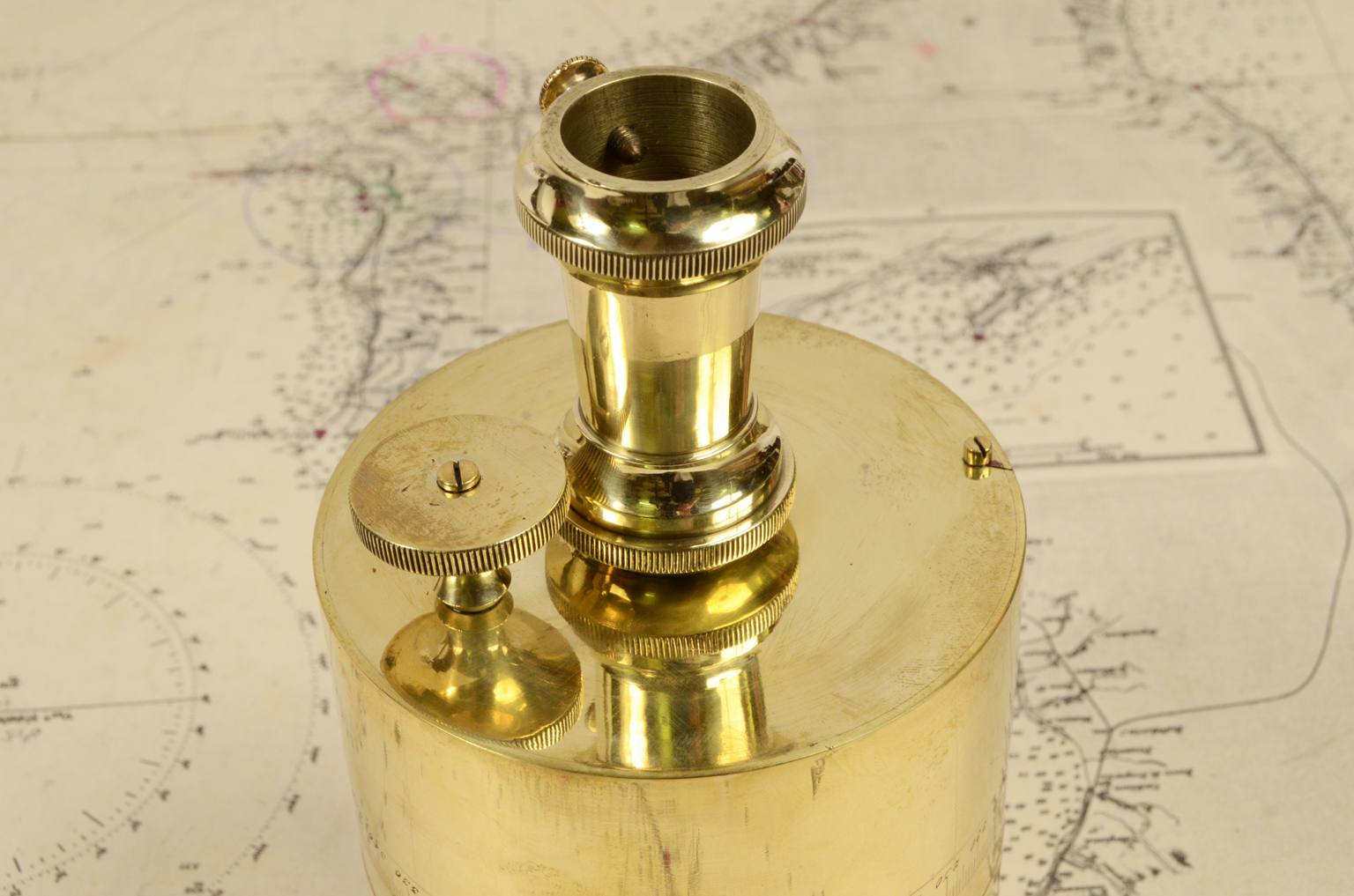

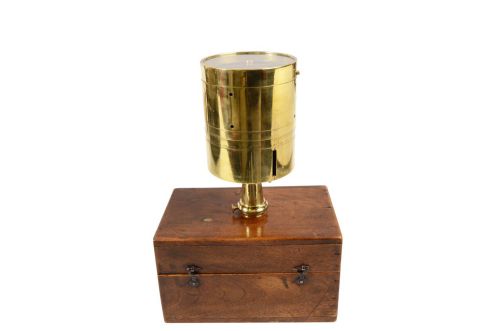

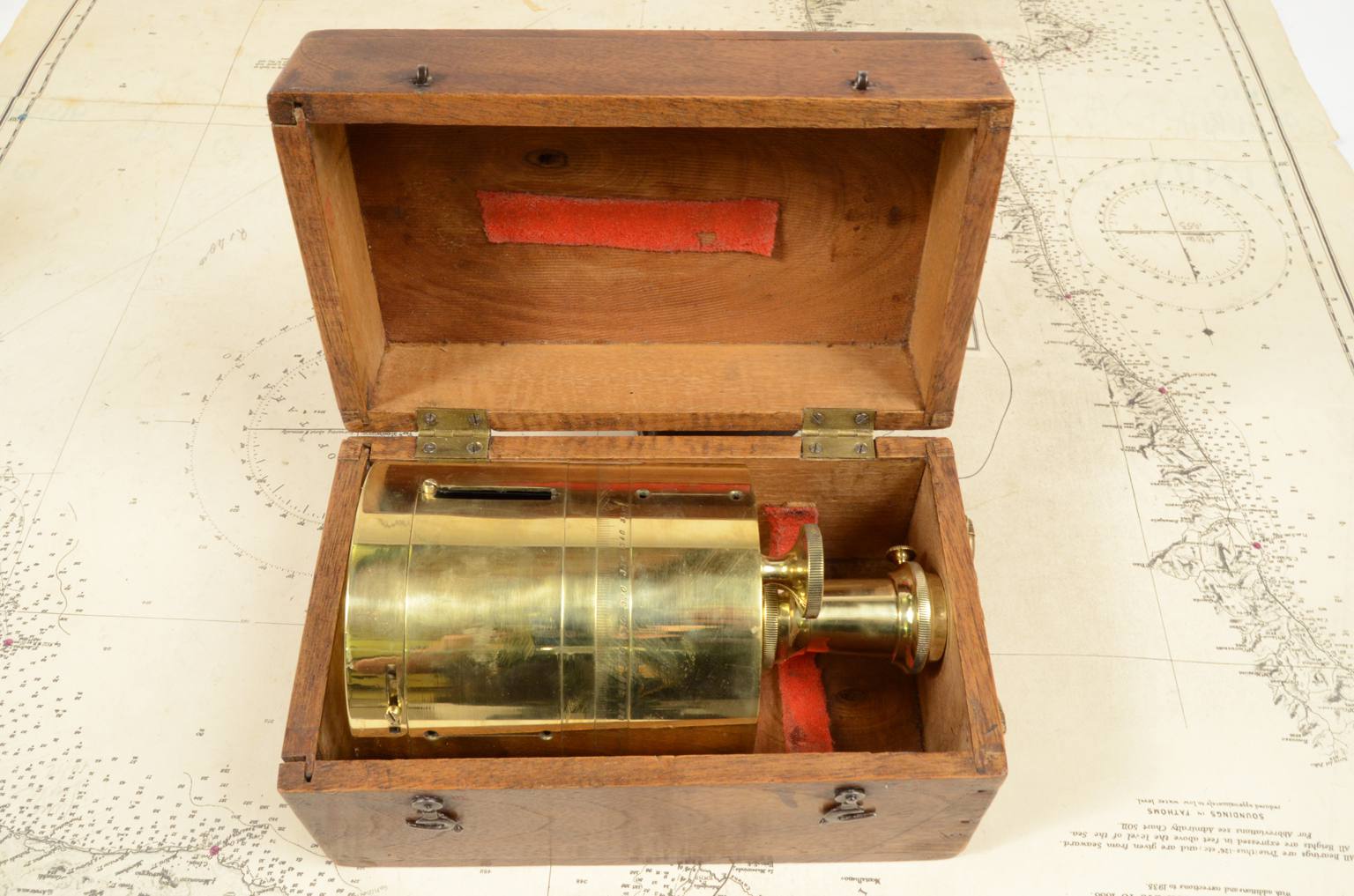

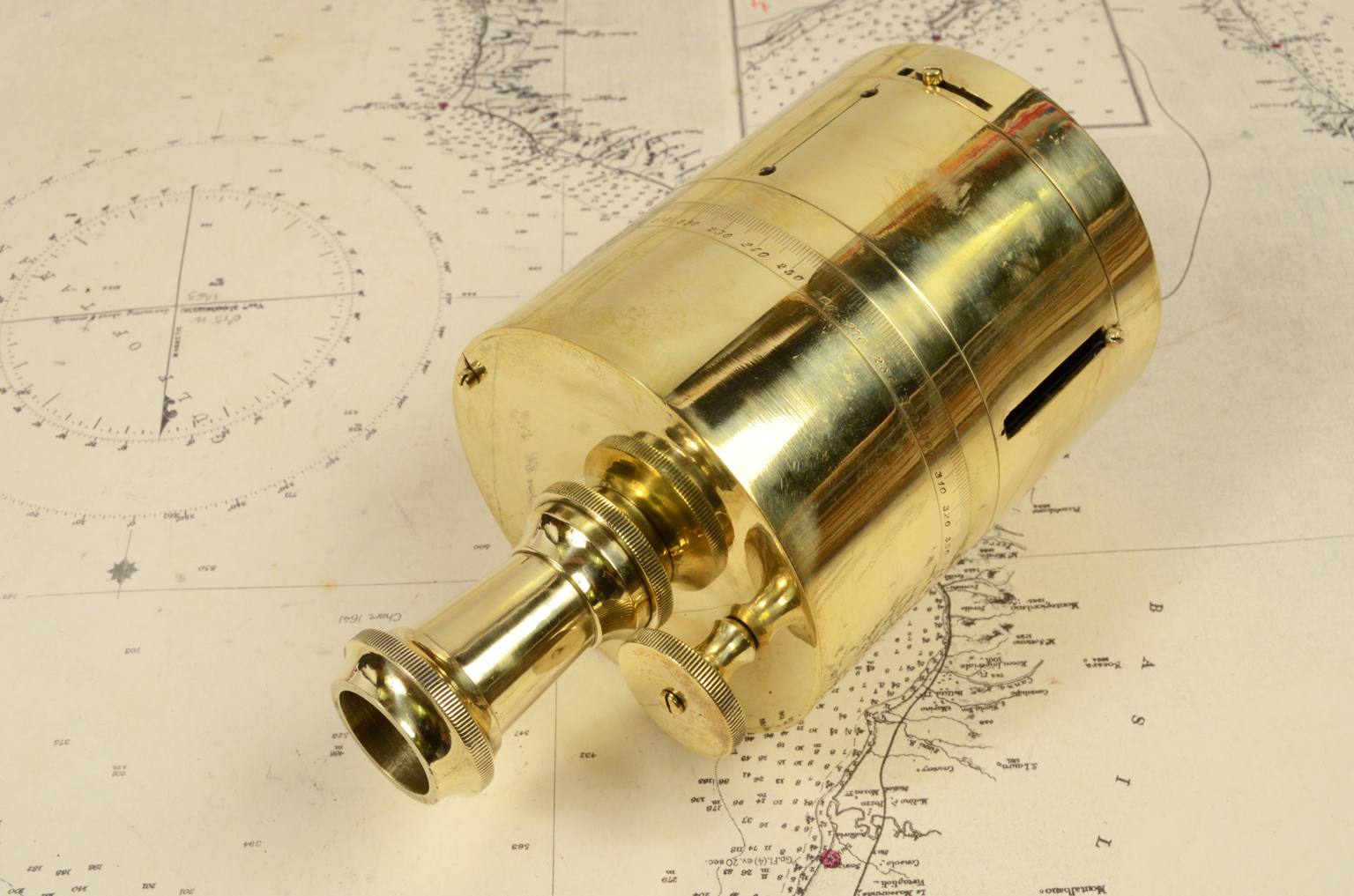

1626092694Code 6985 Land-surveyor squaringLand-surveyor squaring of brass, Italian manufacture, from the second half of the 19th century, complete with original walnut box. It is a topographic instrument consisting of a cylindrical brass box, on which eight sights are practiced, which are used to trace alignments at 45 ° or multiples of 45 °. The graduated square is used for the detection or formation on the ground of alignments at any angle. It consists of two coaxial metal cylinders of which the one below is fixed and is provided, on the upper edge, with a centesimal graduation; the upper cylinder, also called alidade, rotates around a vertical axis. The alidade is equipped with four sights or slots and on the lower edge it is equipped with a reading vernier which represents the indicator in the readings of the graduation of the fixed part. Box size 11x19 h 11 cm - 4.33x7.48 h 4.33 inches.

Topography studies instruments, surveying techniques, calculus and plans to represent graphically in scale a part of the Earth surface on a map, indicating its details like streets, rivers, buildings, cultivations… Topography is a very antique science. Egyptians measured lands along the Nile for tracing borders after periodic overflows of the river. Greeks and Romans used some topographical method very precise; some topographers teams (“gromatici”) following Roman legions traced borders and divided conquered lands in regular plots, then described and represented on copper plates. Arabs used topography to made maps and to measure agrarian surfaces and lands for cadastral use.
